ROGUE RACING'S STAGE 4 ECORAPTOR w/ROLL CAGE

PRERUNNING IN ULTIMATE COMFORT, STYLE & PERFORMANCE

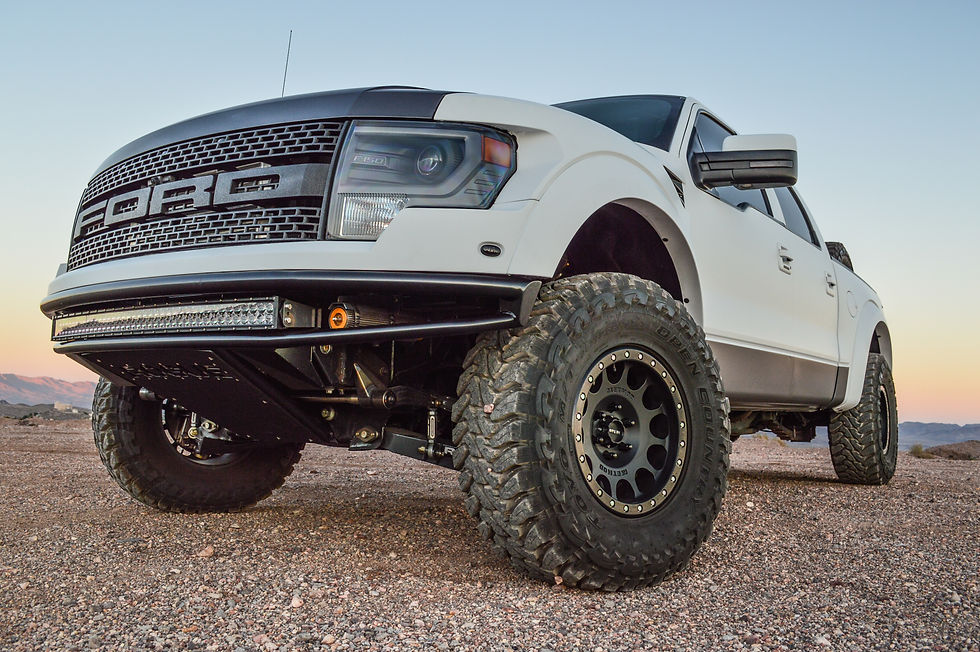

ROGUE RACING STAGE 4 ECORAPTOR
LUXURY PRERUNNING



A avid off-road enthusiast came to us and asked us to build the ultimate pre-runner. He didnt want just any pre-runner, he wanted a production based vehicle that could be driven everyday on the road but would also have superior off-road capabilites as well. He also said he wanted it to be a safe as possible and maintain a comfortable, luxurt feel as well. He said he would be pushing the limits of this truck and we had to completely reinforce anything that on a production based truck, so that it could withstand the punishment. He also said he wanted to maintain as much bed space as possible. All while maintaining a clean apperance. This may have been a tall order for some but we were up to challenge to meet all of his needs.

WITH ROGUE RACING'S COMPLETE STAGE 4 SUSPENSION ALL OF THIS IS FINALLY POSSIBLE. WE DESIGNED A SUSPENSION LINE OF INTERCHANGEABLE COMPONENTS THAT CAN EASILY BE UPGRADED FROM STAGE 1 - STAGE 4. EACH STAGE SAFELY ADDS MORE PERFORMANCE AND HANDLING AND CAN GROW WITH THE DRIVER. WE DESIGNED THIS LINE WITH EASE OF INSTALL BY BEING ALMOST COMPLETELY BOLT-ON AS WELL. OUR REAR CANTILEVER ALLOWS FOR 18" OF STRAPPED USABLE TRAVEL CONCEALED COMPLETELY UNDERNEATH THE BED. OUR COMPLETE STAGE 4 SUSPENSION PACKAGE IS FOR THE FORD RAPTOR OWNER THAT WANTS SUPERIOR OFF-ROAD PERFORMANCE, WITHOUT SACRIFICING DAILY DRIVABILITY.

TO PERFECTLY COMPLIMENT OUR LINE OF SUSPENSION WE DESIGNED A FUNCTIONAL LINE OF OFF-ROAD BUMPERS WITH A BETTER APPROACH ANGLE AND OFF-ROAD LIGHTING CAPABILITIES. ROGUE RACING BUMPERS COMPLETE THE ENTIRE SET-UP WITH A LOW PROFILE, CLEAN LOOK THAT RAISES THE BAR IN PRE-RUNNER STYLE.

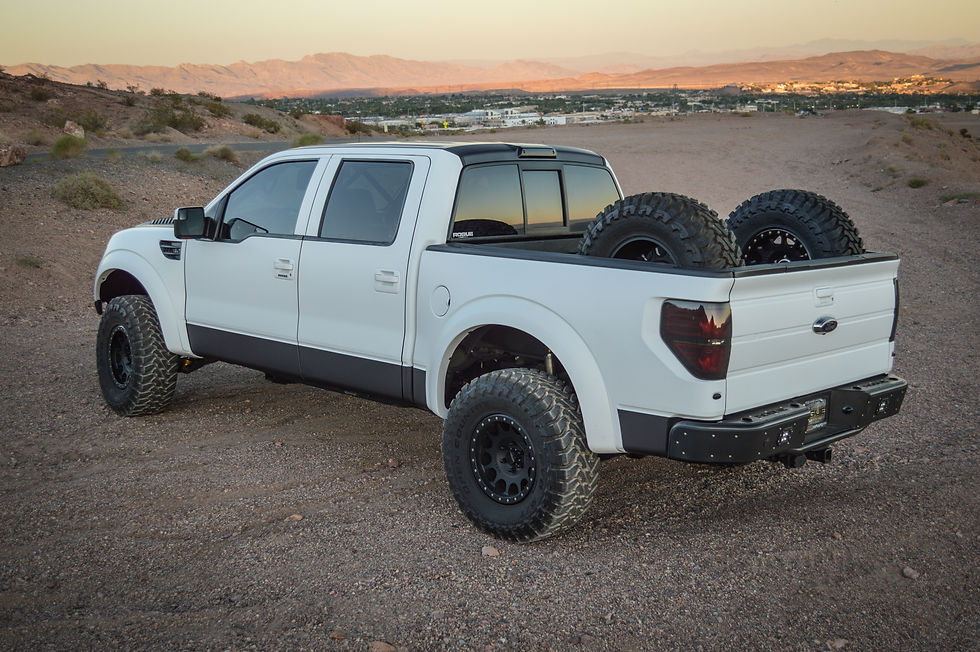

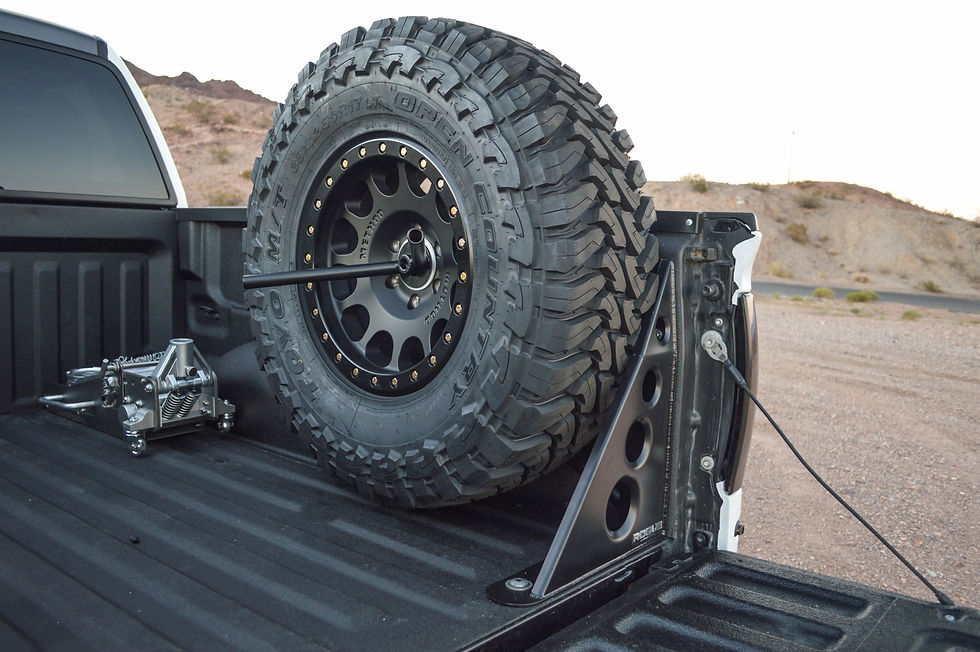

THIS BUILD INCLUDES A COMPLETELY CUSTOME BUILT ROLL CAGE, CUSTOM INTERIOR, CUSTOM TIRE CARRIER WITH BUILT IN BED SUPPORTS. NO DETAIL WAS OVER LOOKED. CHECK OUT THE FULL GALLERY. AND FOR MORE INFORMATION ABOUT CUSTOM BUILD CALL US AT 855-757-6483

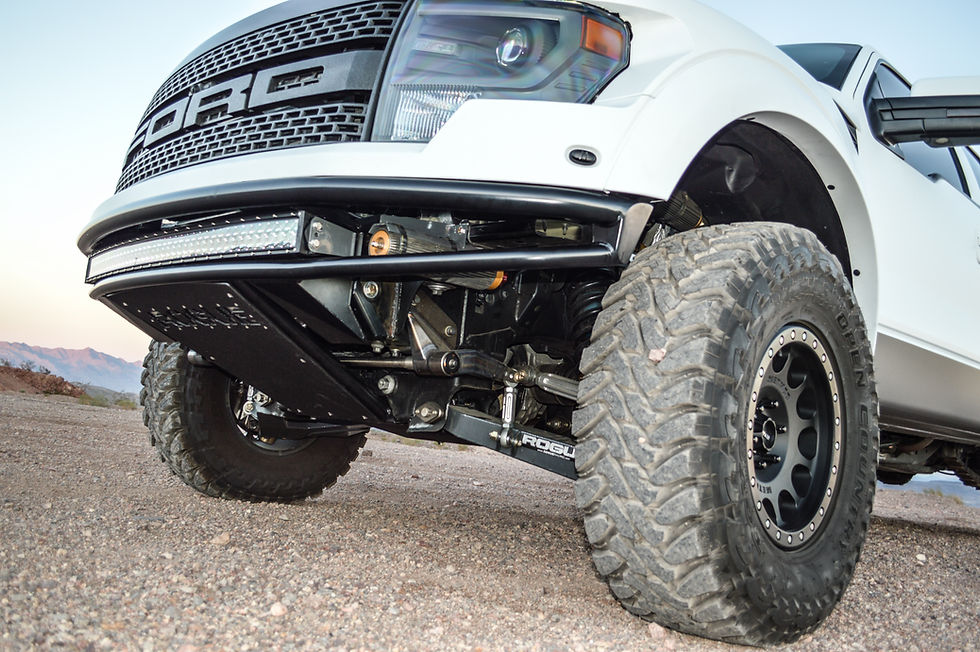

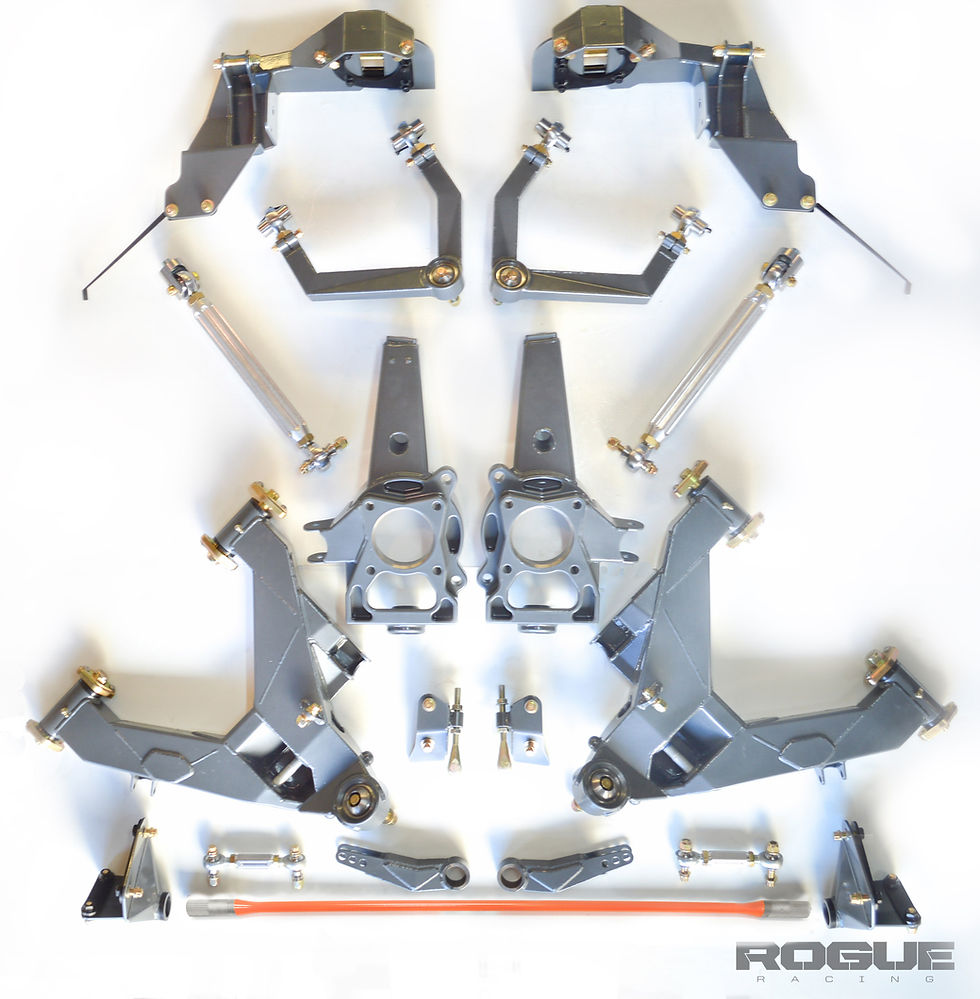

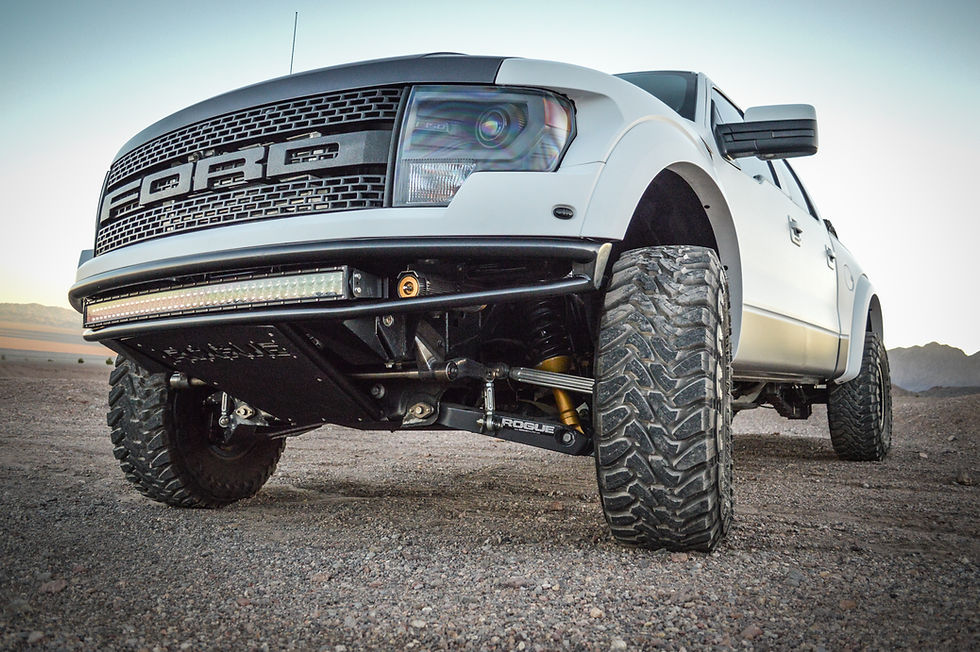

ROGUE RACING STAGE 4 BOLT -ON FRONT SUSPENSION:

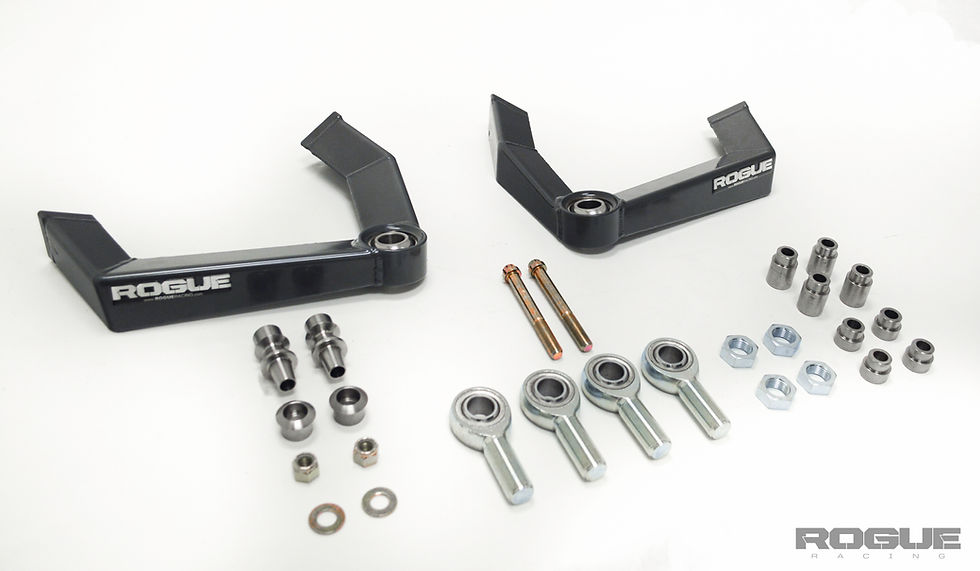

-HEIMED UPPER CONTROL ARMS

-DOUBLE SHEAR HD TIE RODS

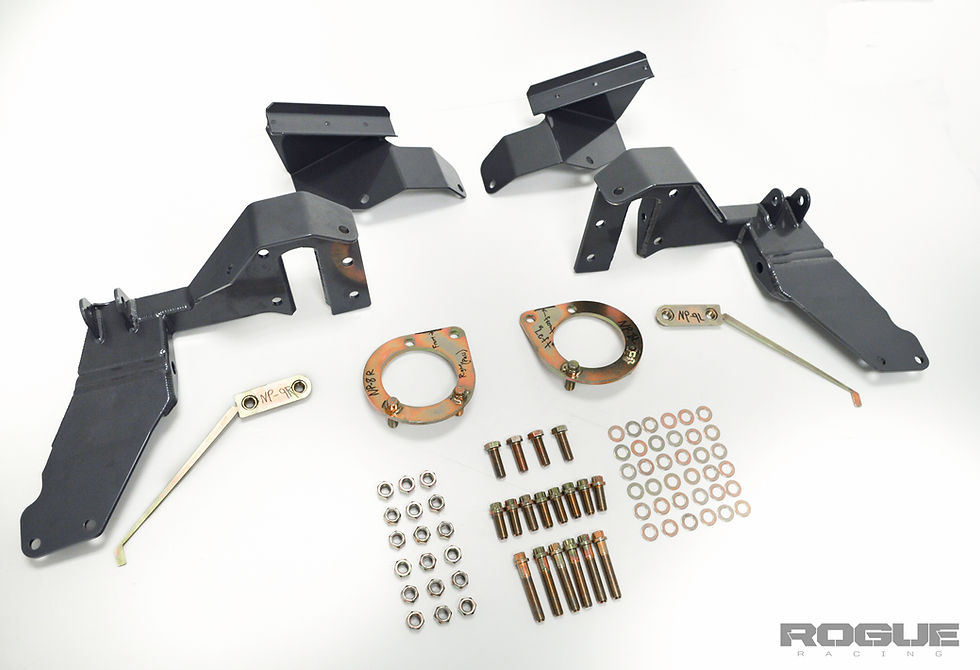

-SHOCK TOWER

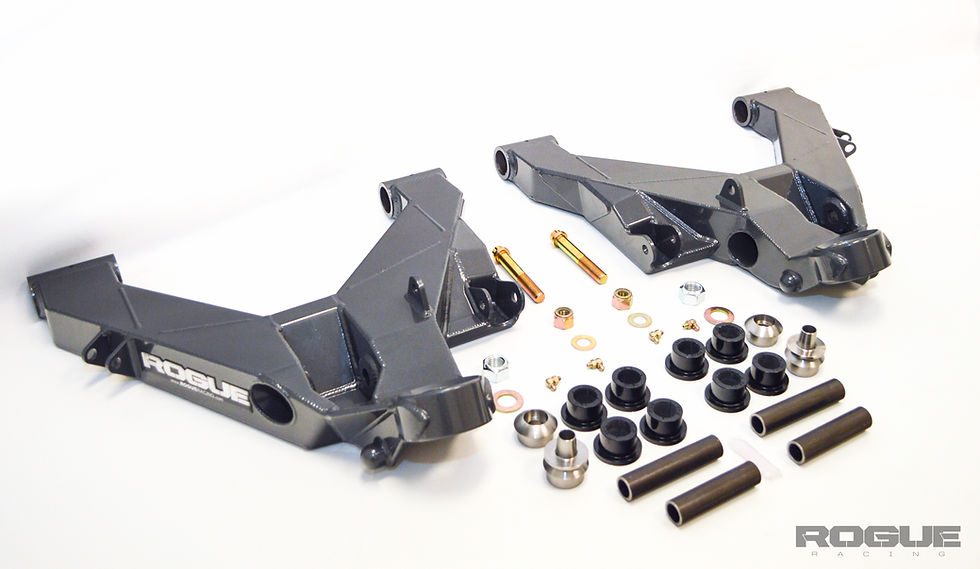

-LOWER CONTROL ARMS w/ BYPASS POCKET

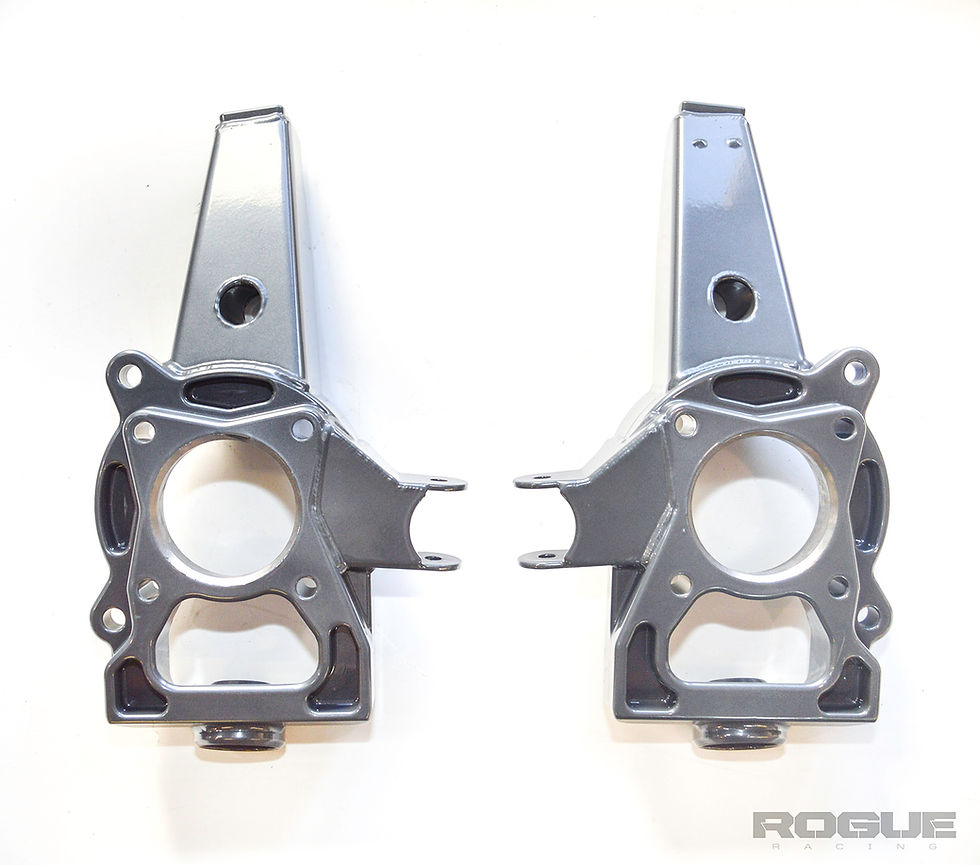

-STOCK REPLACEMENT DOUBLE SHEAR SPINDLE

-SLOT DELETE ALIGNMENT KIT

-SWAY BAR RELOCATION BRACKET

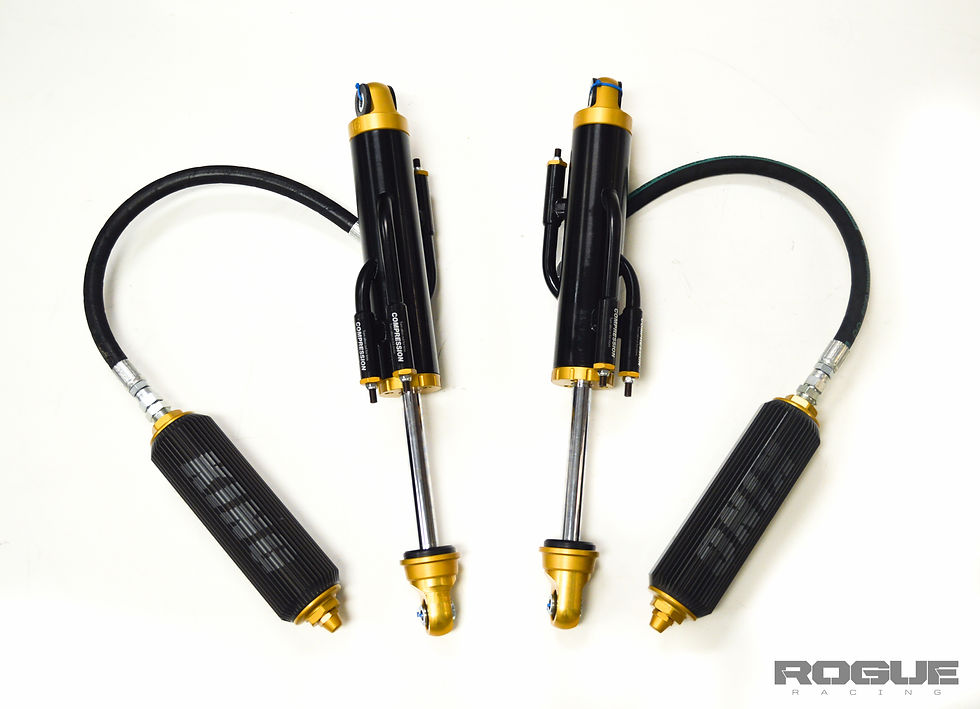

-CUSTOM KING 3.0 COILOVER, REMOTE RESERVOIR RACE SHOCK

-CUSTOM KING 3.0 BYPASS, REMOTE RESERVOIR RACE SHOCK

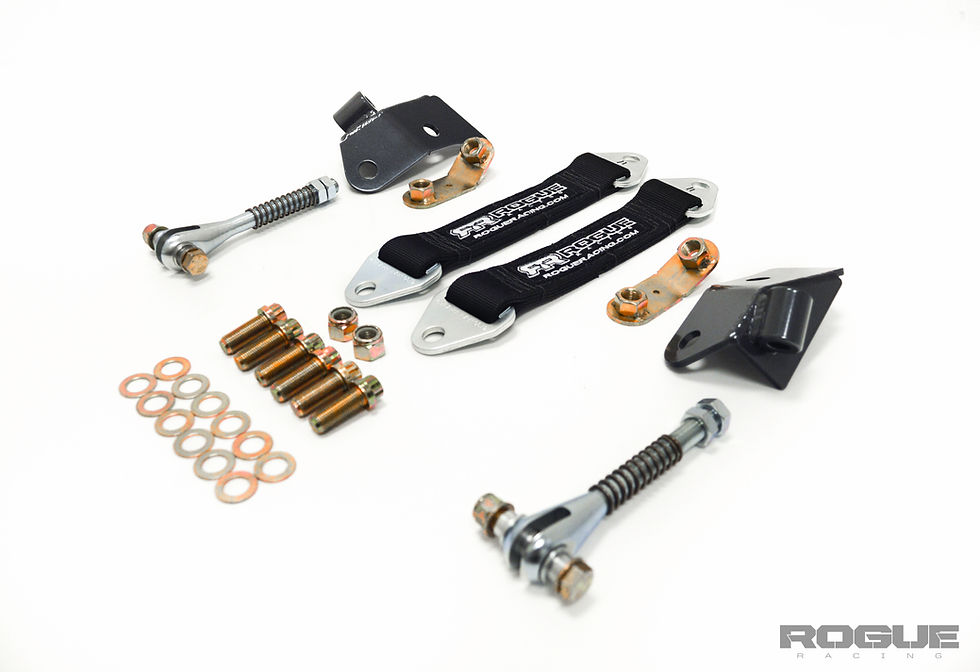

-ADJUSTABLE LIMIT STRAP KIT

-PAC RACING SPRING SWAY BAR



EXTERIOR:

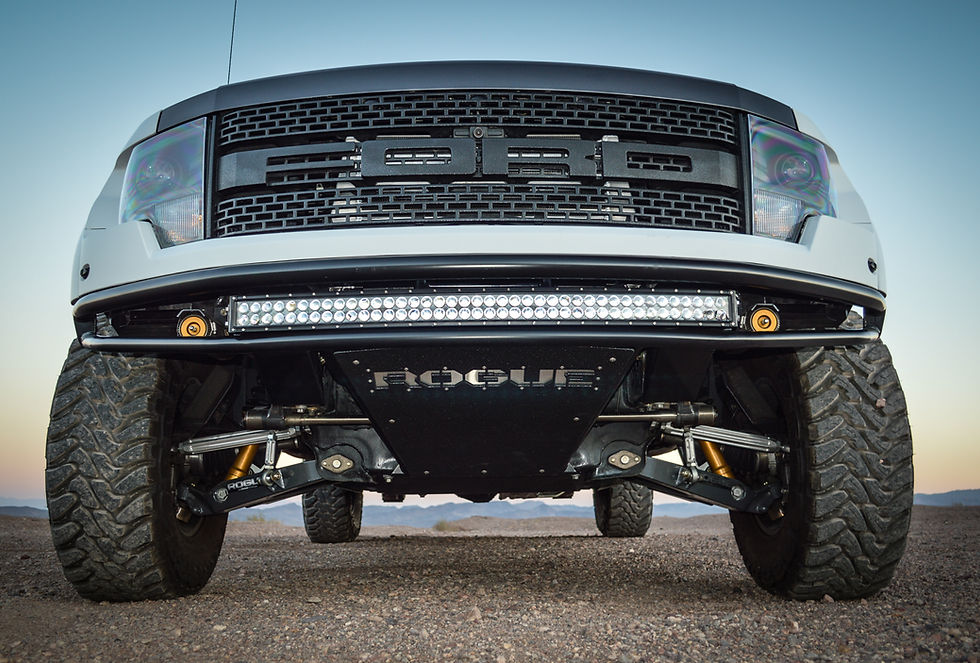

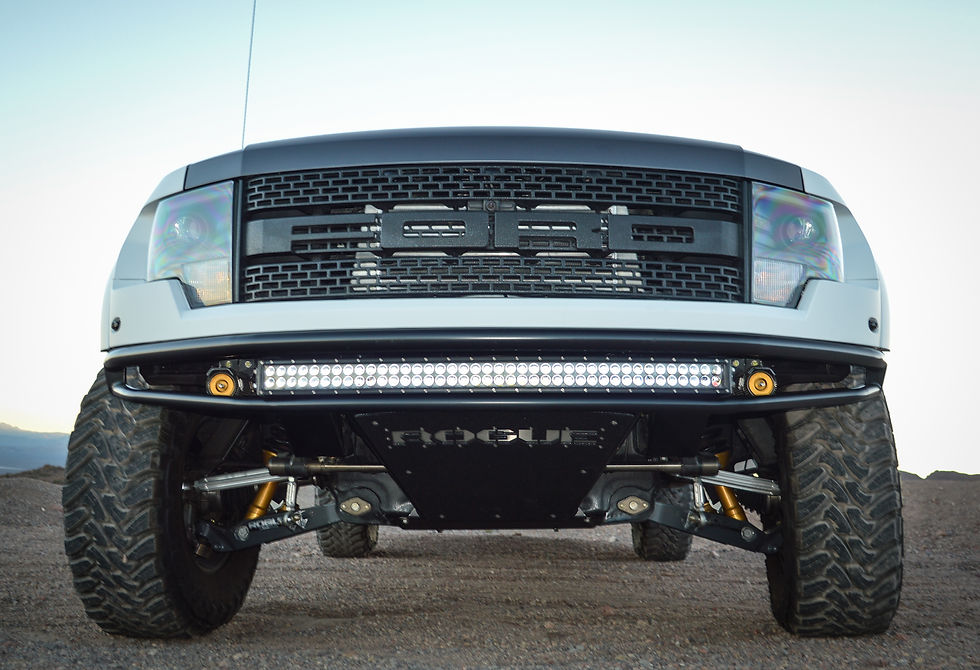

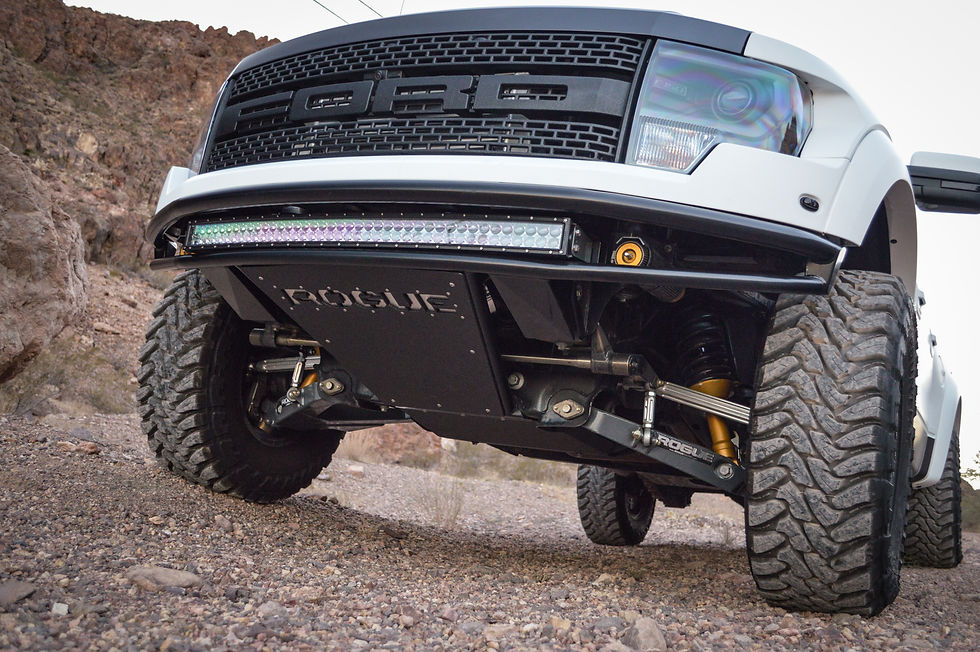

-ROGUE RACING RENEGADE FRONT BUMPER w/ REINFORCED  BELLY SKID PLATE

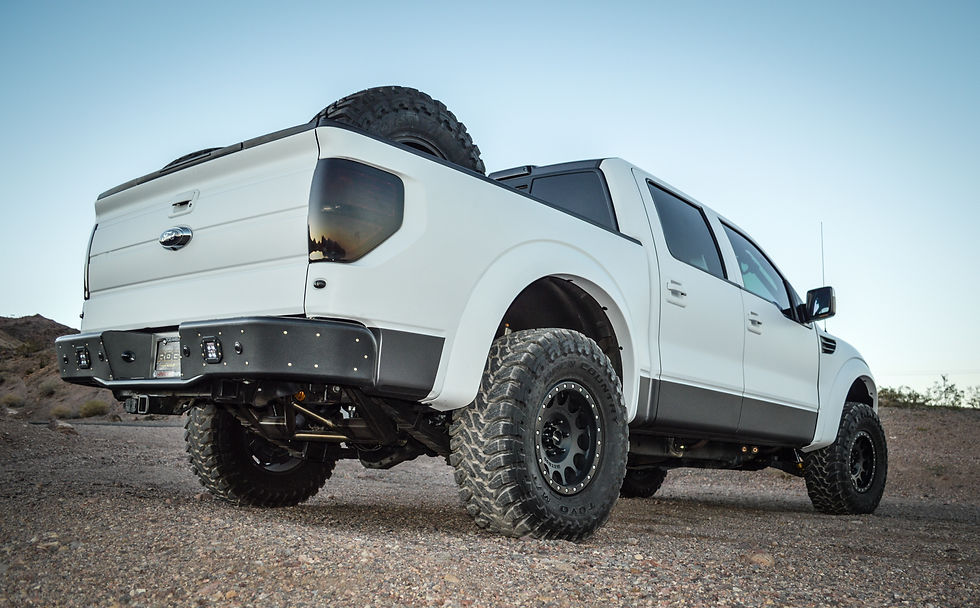

-ROGUE RACING REVOLVER REAR BUMPER w/LED LIGHTING

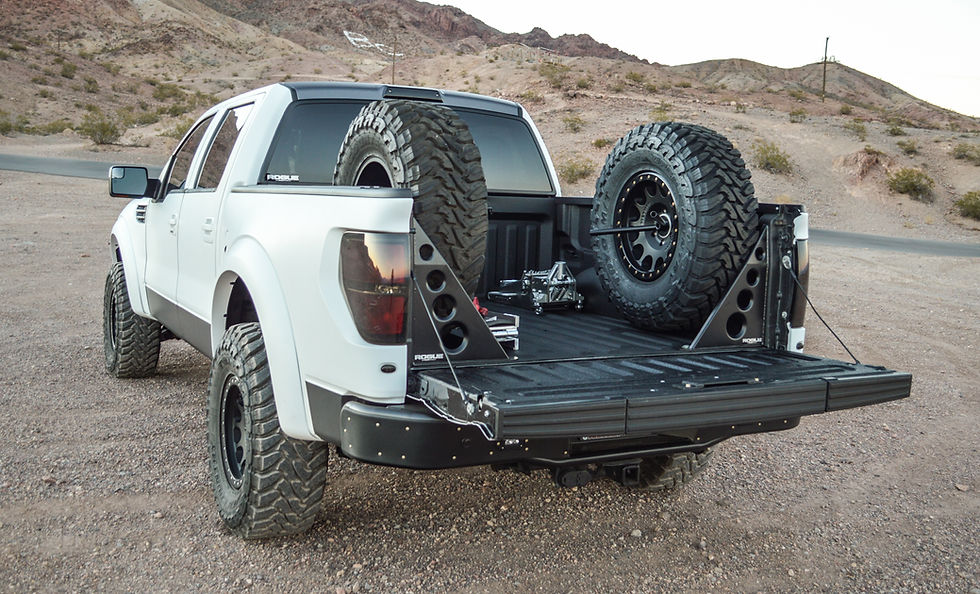

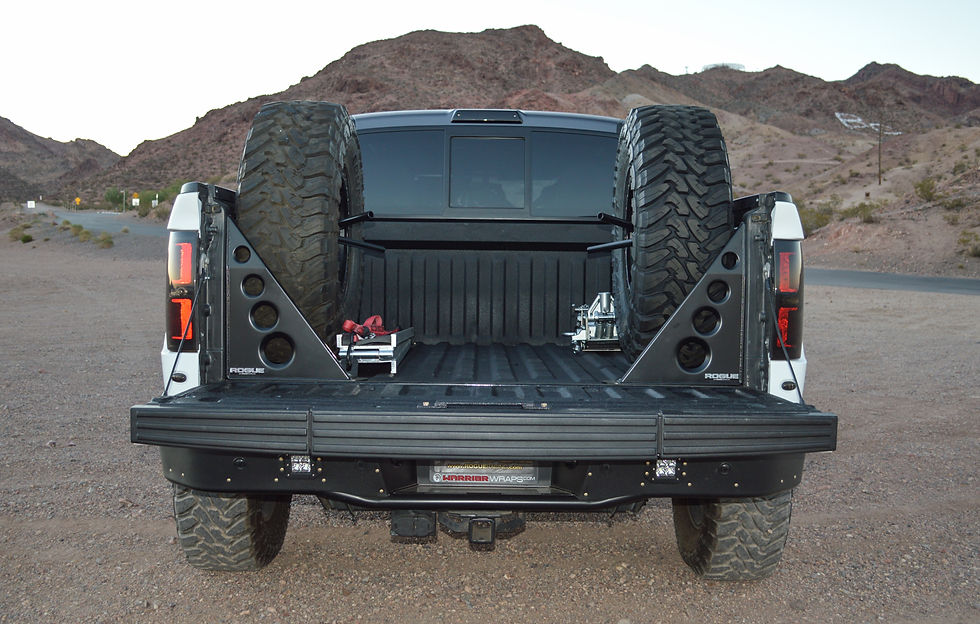

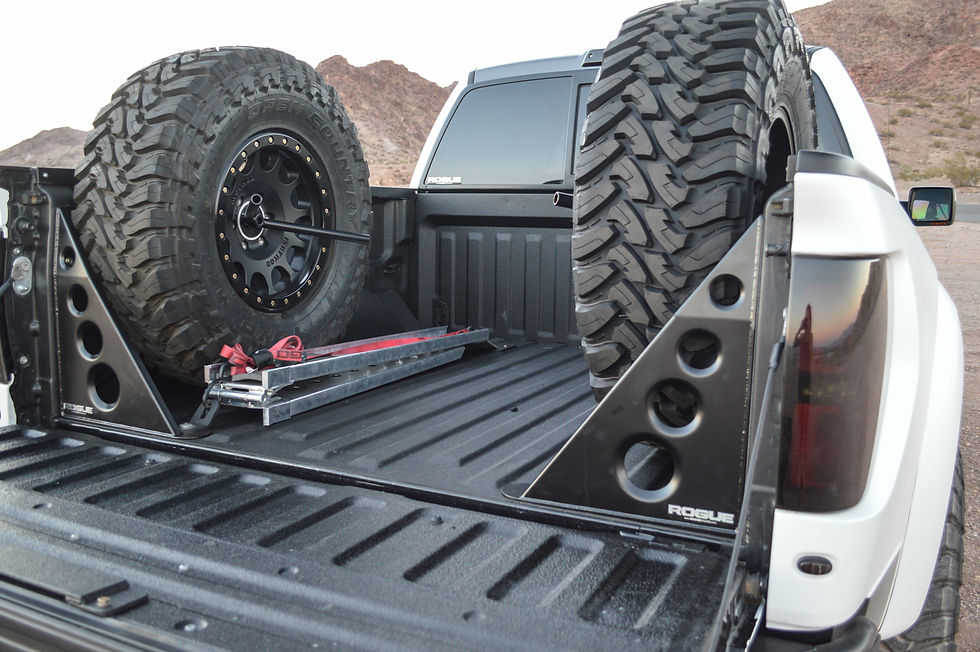

-BED TIE MOUNT WITH INTERGRATED BED SIDE SUPPORTS, DIMPLED FOR STRENGTH

-INTERNAL BED SUPORTS REINFORCED WITH 3/16" STEEL PLATING

-METHOD RACE WHEELS 17" 105 BEADLOCKS

-35" TOYO M/T's

-UPGRADED INTERCOOLER

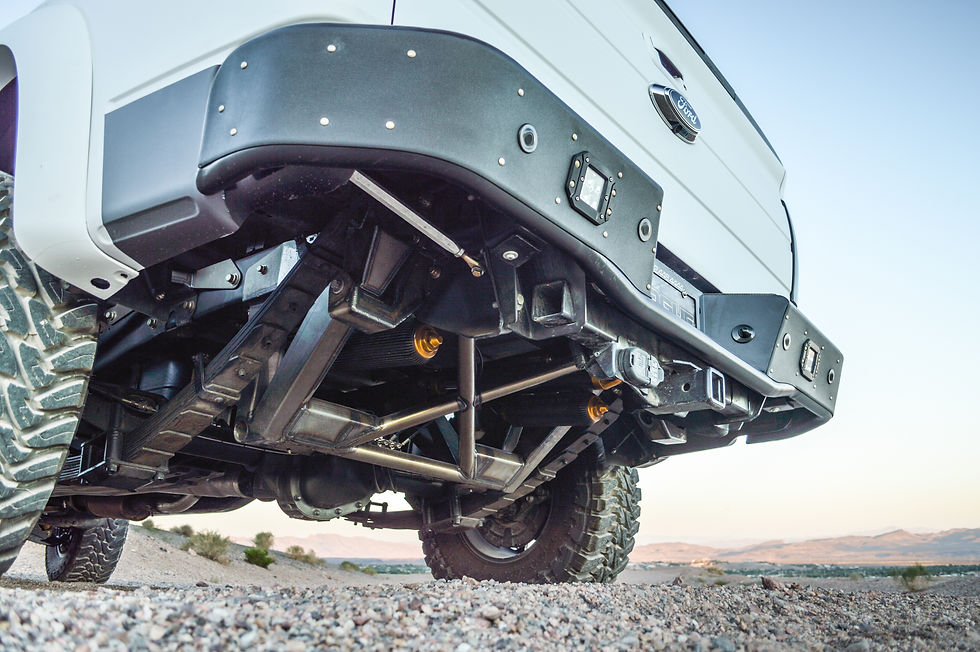

ROGUE RACING REAR SUSPENSION:

-BUMP STOP GUSSET KIT

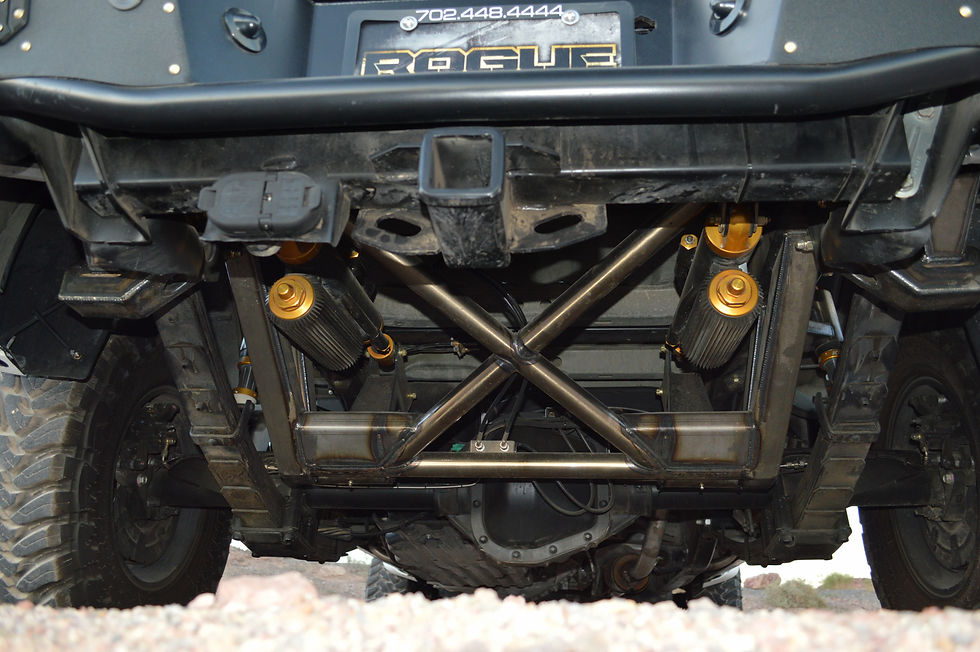

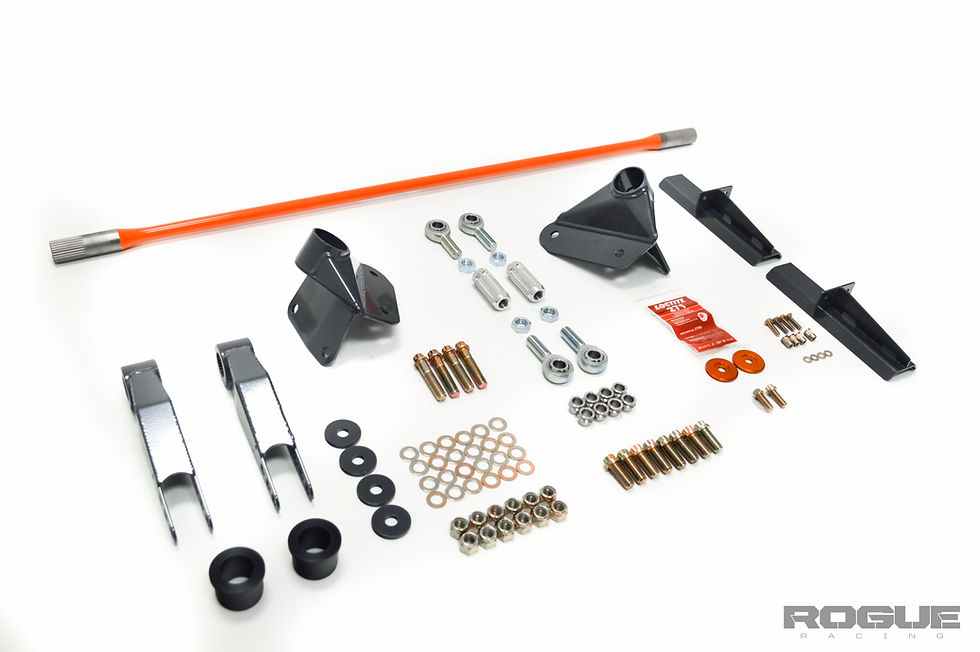

-REAR CANTILEVER KIT

-FLIP BRACKET KIT

-AXLE REINFORCEMENT CLAMP

-REAR SHACKLE KIT

-SPRUNG UNDER DEAVER LEAF SPRINGS

-ADJUSTABLE LIMIT STRAP

-KING 2.5 x 2.0 AIR BUMPS

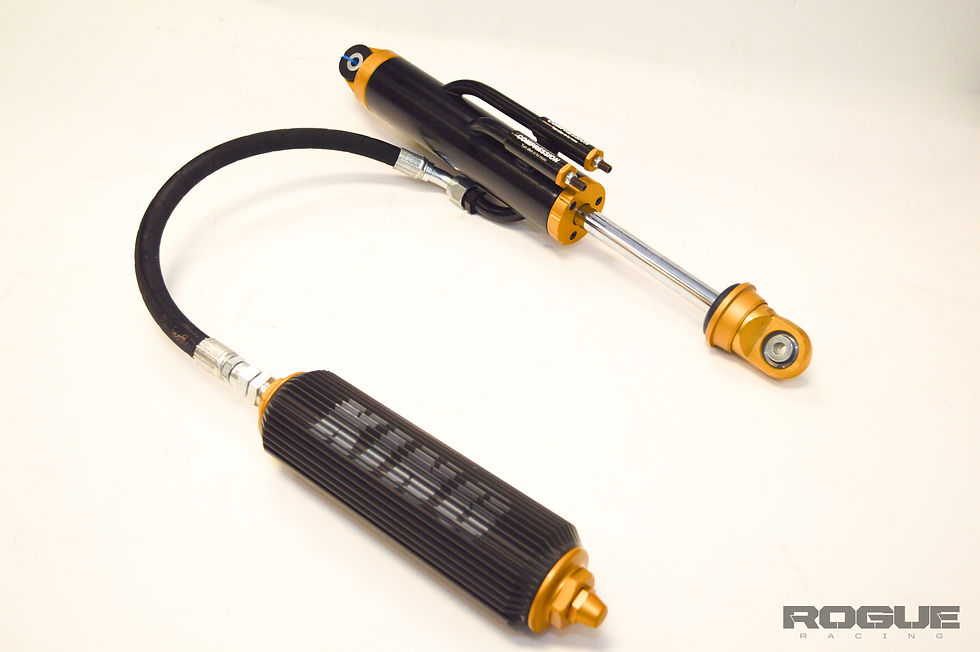

-CUSTOM KING 3.0 RACE SERIES 3 TUBE PIGGYBACK BYPASS SHOCKS

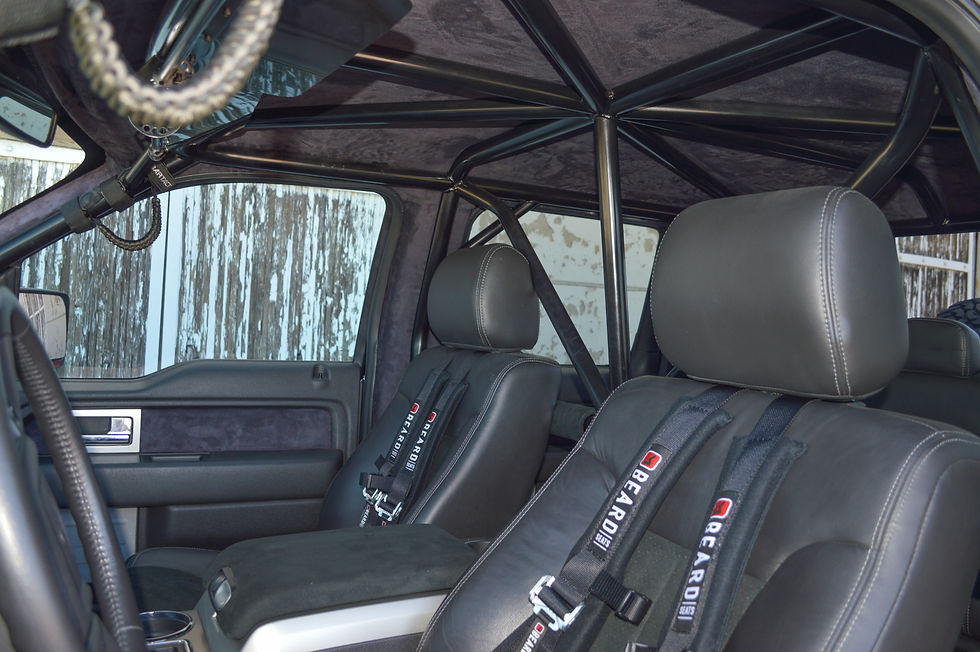

INTERIOR:

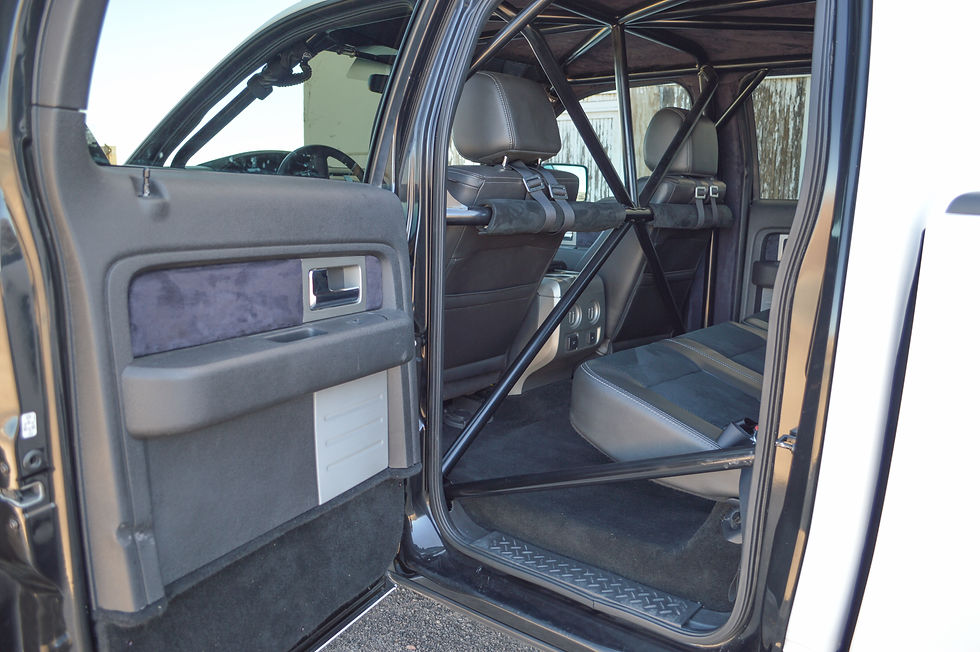

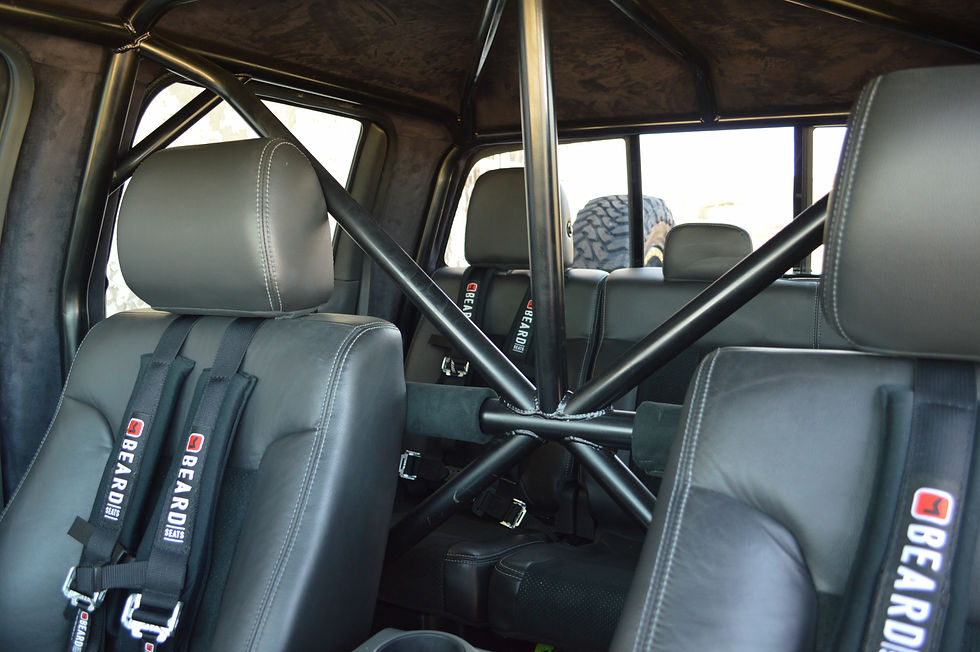

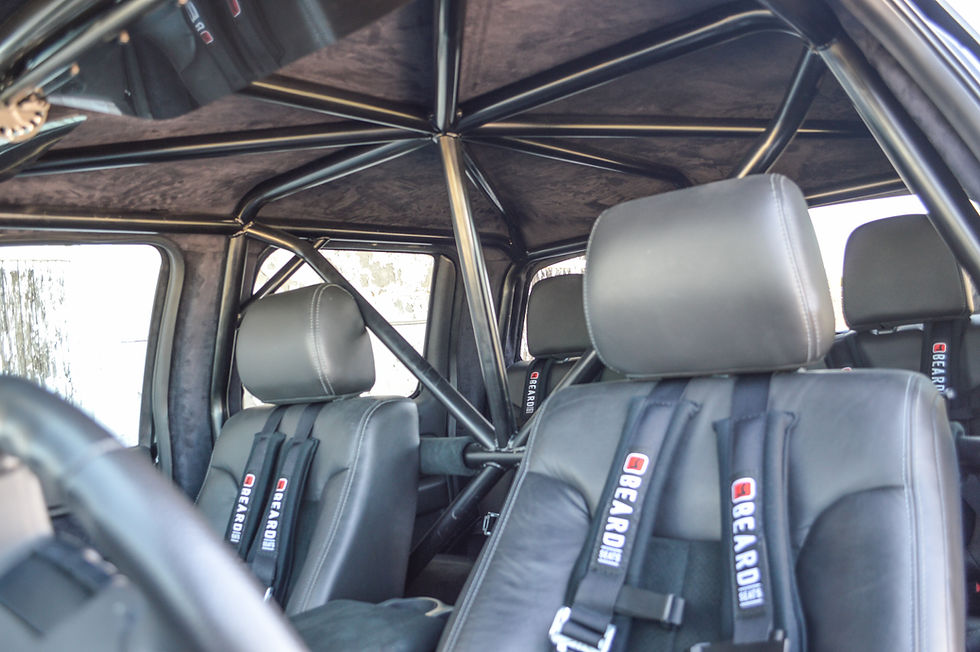

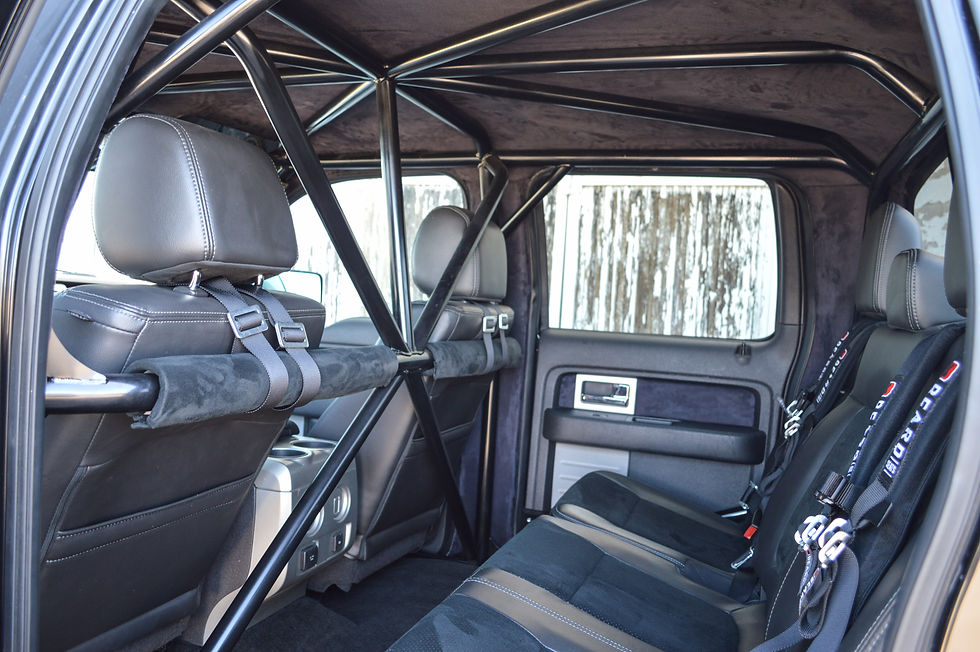

-ROGUE RACING CUSTOM ROLL CAGE TIED TO FRAME

-NO BODY CUTTING

-TIG WELDED GUSSETS

-FRAME TIES ON BUSHING TO ALLOW FLEX & MOVEMENT FROM THE CAB

-5 PT BEARD HARNESSES

-OVERHEAD TUBES RADIUSED FOR ADDITIONAL HEADROOM

-CUSTOM SUEDE INTERIOR

-CUSTOM SUN VISORS



MORE INFORMATION ABOUT THE STAGE 4 SUSPENSION SYSTEM
